Active Directory Authentication

What You’ll Learn

In this tutorial, you will learn how to configure Hazelcast IMDG Enterprise to authenticate cluster members and clients using Kerberos tickets in the Microsoft Active Directory domain.

You will also cover the role mapping based on the user’s group membership in the Active Directory.

Before you Begin

Hazelcast IMDG Enterprise and its License Key (You can ask for a trial license through the license form).
Active Directory server (AD) and the 2nd Windows server connected in the Active Directory domain
JDK 1.8+ (You can get Windows installer on Azul Zulu download page for instance.)
A text editor or IDE

Active Directory domain in MS Azure

If you don’t have an Active Directory domain configured in your environment, you can provision one in MS Azure. There is an Azure deployment template on GitHub which starts a domain for you on few clicks:

https://github.com/maxskunkworks/TLG/tree/master/tlg-base-config_3-vm

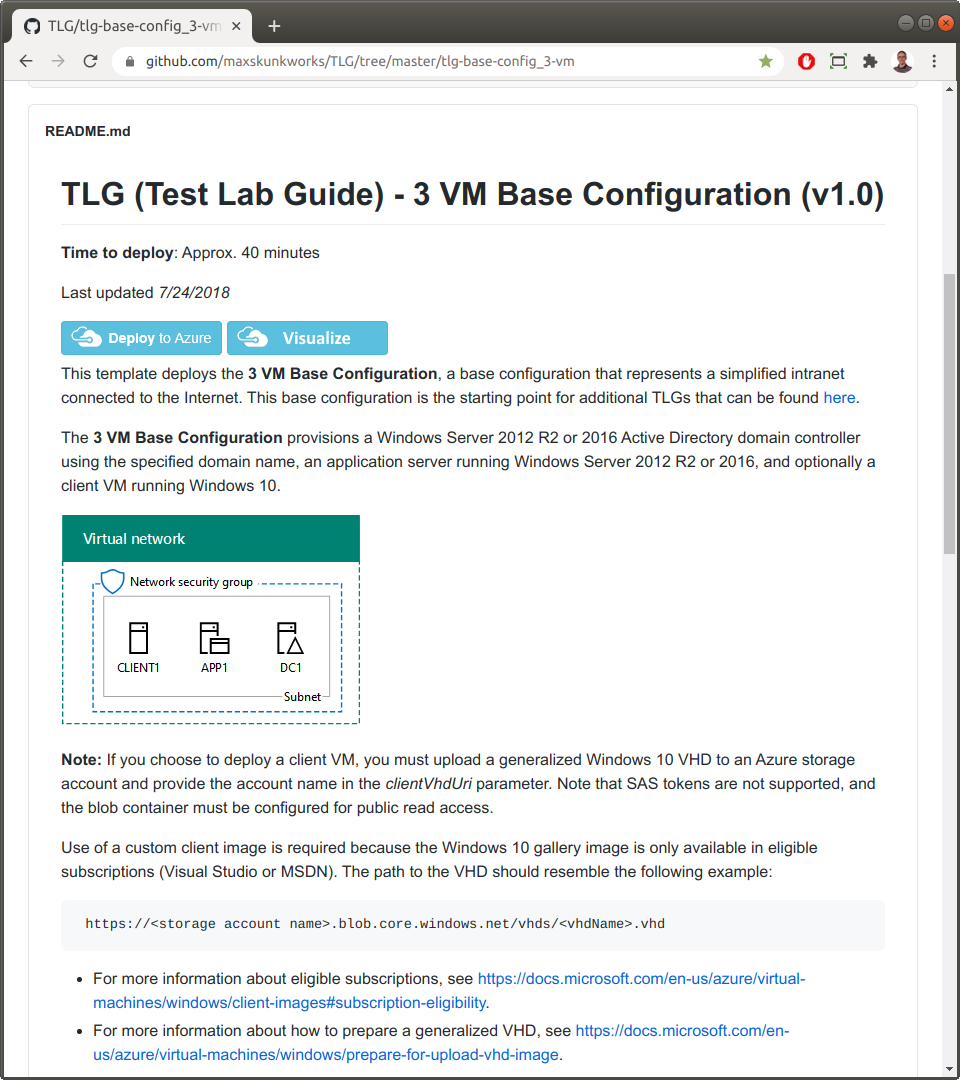

Figure 1. Screenshot - Azure AD template on GitHub

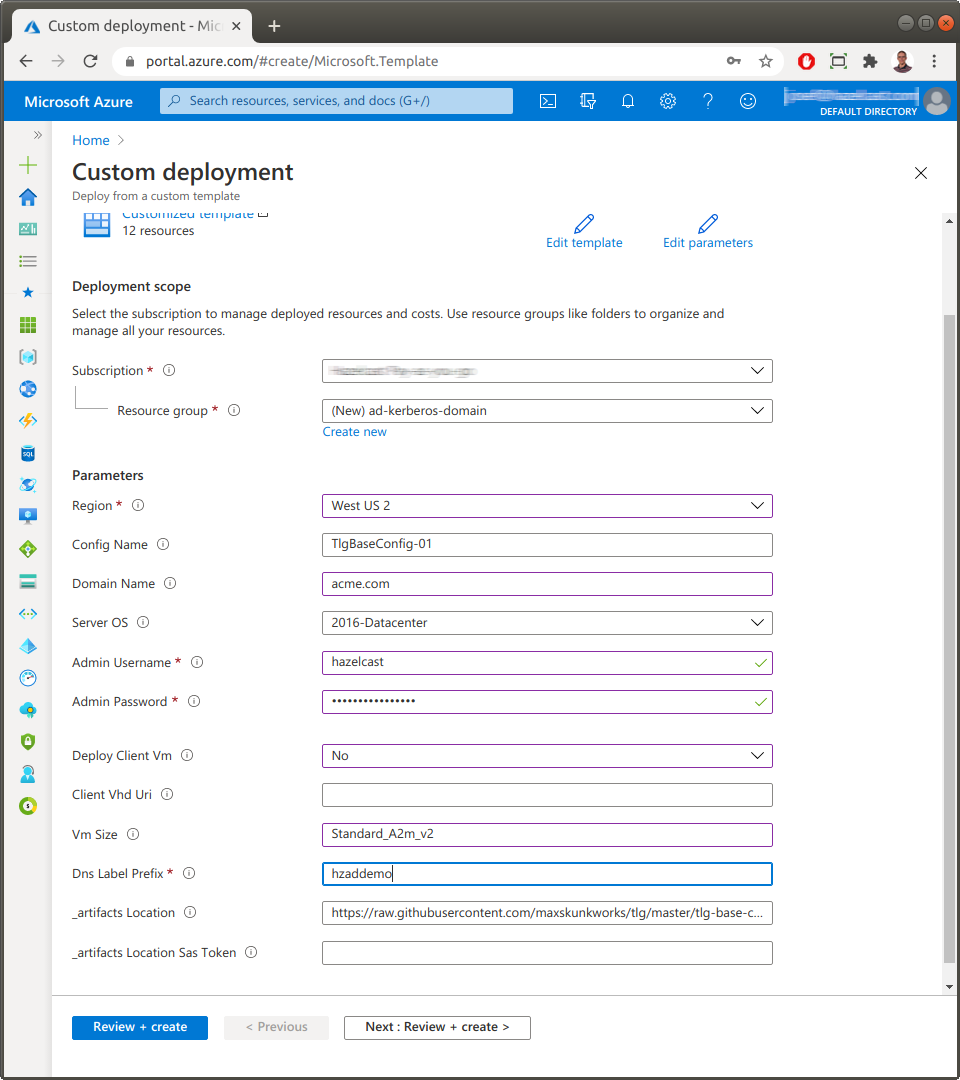

Figure 2. Screenshot - AD domain template parameters on Azure

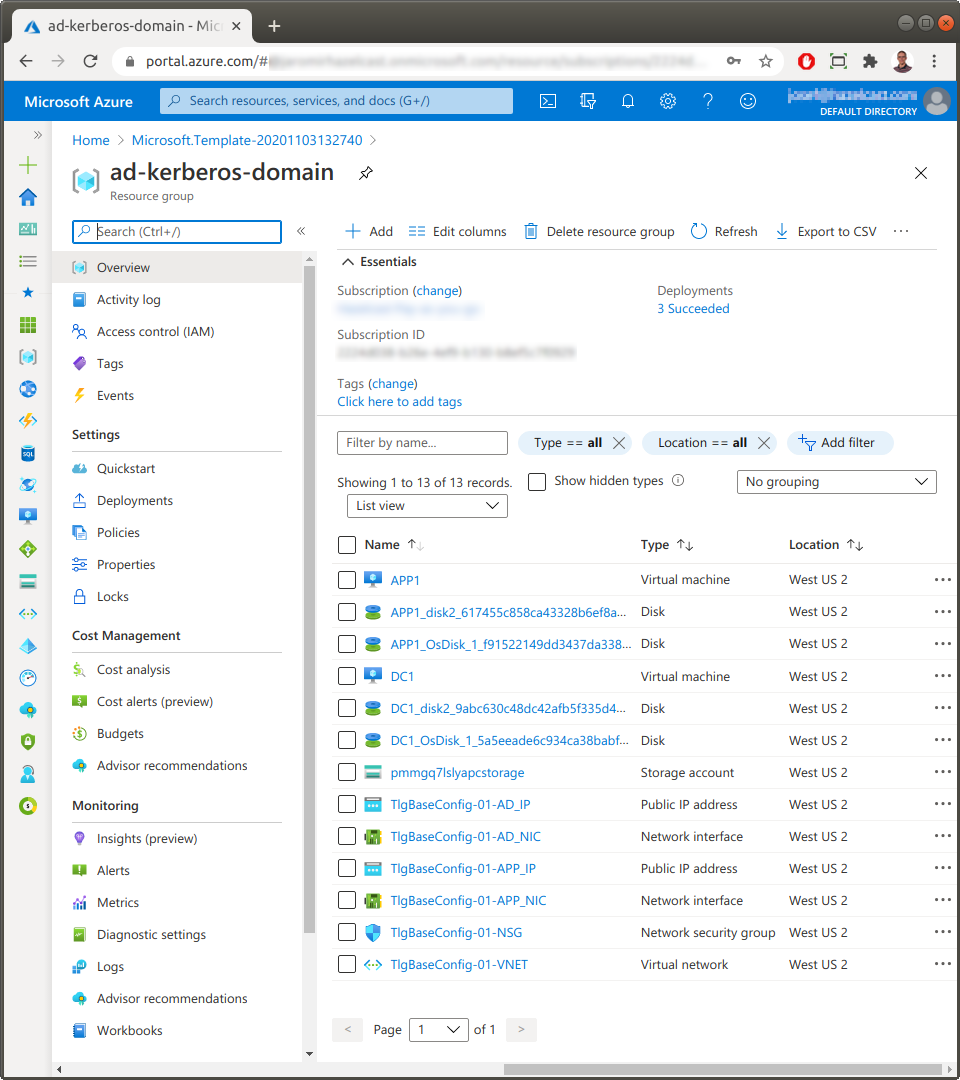

Figure 3. Screenshot - AD domain deployment on Azure

Environment

The sample environment used in this guide contains 2 Windows servers

Domain controller with Active Directory (hostname: dc1)
Application server attached to the domain (hostname: app1)

The servers are connected to a domain named acme.com. Its upper-case version is also the Kerberos realm name (ACME.COM).

Hazelcast connections are based on IP addresses, so they will be also necessary for the Kerberos authentication configuration.

Following addresses are used in our environment:

10.0.0.10 dc1
10.0.0.11 app1

If you don’t use the Azure test environment, then replace the hostname and IP values to fit your environment in commands and Hazelcast configuration files used in this guide.

Hazelcast port on Windows Firewall

If you have Windows Firewall enabled, then allow access to the default Hazelcast port numbers (5701-5703). You can use the following PowerShell command:

New-NetFirewallRule -DisplayName 'Hazelcast ports 5701-5703' `
  -Name Hazelcast -Direction Inbound -Action Allow `
  -Protocol TCP -LocalPort 5701-5703

Adding firewall rule in a PowerShell window.

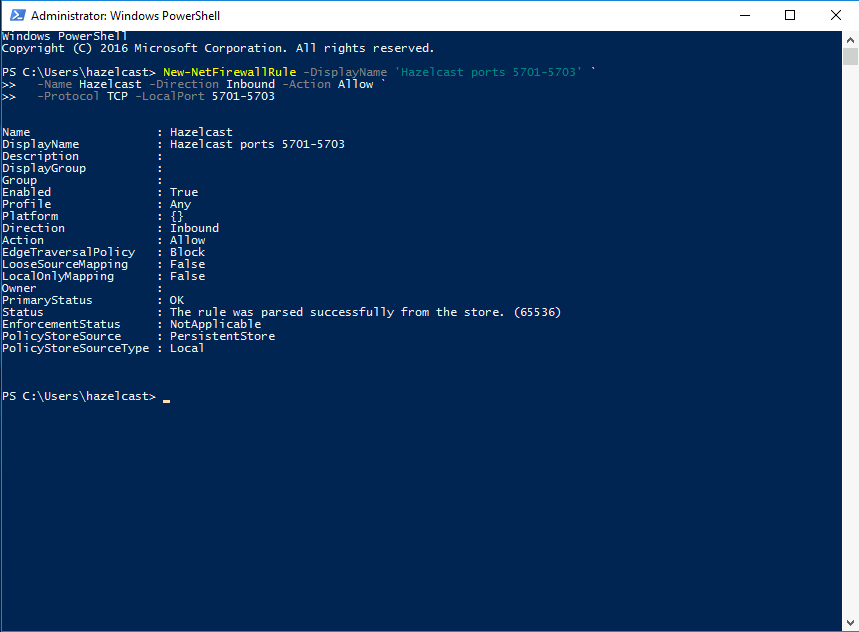

Figure 4. Screenshot - Adding Windows Firewall Rule in PowerShell

Kerberos configuration file

Java searches the Kerberos realms configuration in the krb5.ini file on Windows. The file contains the address of the Key Distribution Center (KDC) - i.e. Active Directory server in our case.

So let’s create one simple configuration file C:\Windows\krb5.ini on both servers.

C:\Windows\krb5.ini

[libdefaults]
    default_realm = ACME.COM
[realms]
    ACME.COM = {
        kdc = dc1.acme.com
    }
[domain_realm]
    .acme.com = ACME.COM

Kerberos protocol checks are often case-sensitive. Use the proper form of principal names and use the upper-case Kerberos realm name!

Create member accounts in Active Directory

We will use the PowerShell on the Domain controller to create an Active Directory user account for each Hazelcast member. We don’t need to provide passwords, Active Directory will generate random ones for us. We will also need a keytab file for each member. Keytab files will contain the password as a shared secret used for authentication and Kerberos ticket verification.

New-ADUser -Name hz-app1 -PasswordNotRequired $True `
  -PasswordNeverExpires $True -PassThru -Enabled $True
ktpass -princ hz/10.0.0.11@ACME.COM -mapuser hz-app1@ACME.COM `
  -out hz-app1.keytab +rndPass -ptype KRB5_NT_PRINCIPAL

New-ADUser -Name hz-dc1 -PasswordNotRequired $True `
  -PasswordNeverExpires $True -PassThru -Enabled $True
ktpass -princ hz/10.0.0.10@ACME.COM -mapuser hz-dc1@ACME.COM `
  -out hz-dc1.keytab +rndPass -ptype KRB5_NT_PRINCIPAL

Commands used:

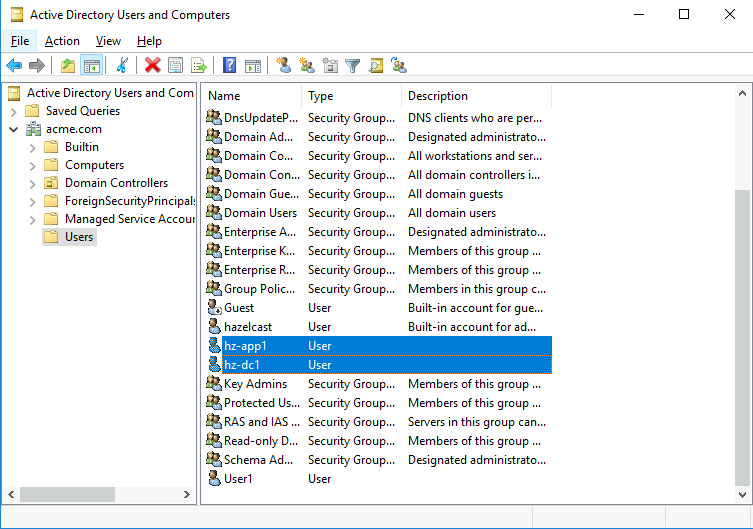

Figure 5. Screenshot - New accounts in AD users GUI

The hz/10.0.0.10@ACME.COM and hz/10.0.0.11@ACME.COM are Service Principal Names (SPN) and we will reference them in the Hazelcast member configuration. The hz/ is a service prefix, followed by the IP address and the Kerberos realm name.

Move the newly generated keytab files to the bin directory within the Hazelcast Enterprise installation (e.g. C:\hazelcast-enterprise-4.1\bin).

As the hz-app1 account will be used by the application server we need to move the newly generated hz-app1.keytab file from the domain controller to the application server.

Configure Hazelcast members

We will use the YAML configuration file located in the bin directory. We need to remove the existing member configuration file (hazelcast.xml) first.

cd \hazelcast-enterprise-4.1\bin
del hazelcast.xml

Now we create the new configuration file called hazelcast.yml. The file will define the network discovery method and security.

The simple form of Kerberos security configuration will be used - this should only be used for testing.

Following configuration is for the application server:

C:\hazelcast-enterprise-4.1\demo\hazelcast.yml

hazelcast:
  license-key: "PUT_THE_LICENSE_KEY_HERE"
  network:
    join:
      multicast:
        enabled: false
      tcp-ip:
        enabled: true
        member-list:
          - 10.0.0.10
          - 10.0.0.11
  security:
    enabled: true
    realms:
      - name: kerberosRealm
        authentication:
          kerberos:
            relax-flags-check: true
            use-name-without-realm: true
            principal: hz/10.0.0.11@ACME.COM
            keytab-file: hz-app1.keytab
        identity:
          kerberos:
            realm: ACME.COM
            principal: hz/10.0.0.11@ACME.COM
            keytab-file: hz-app1.keytab
    member-authentication:
      realm: kerberosRealm

Use similar configuration on the domain controller. Just update principal name and path to the keytab file:

principal: hz/10.0.0.10@ACME.COM
keytab-file: hz-dc1.keytab

Don’t forget to replace PUT_THE_LICENSE_KEY_HERE placeholder with a real license key.

Starting Hazelcast members on both servers should now result in forming a new Hazelcast cluster with both members.

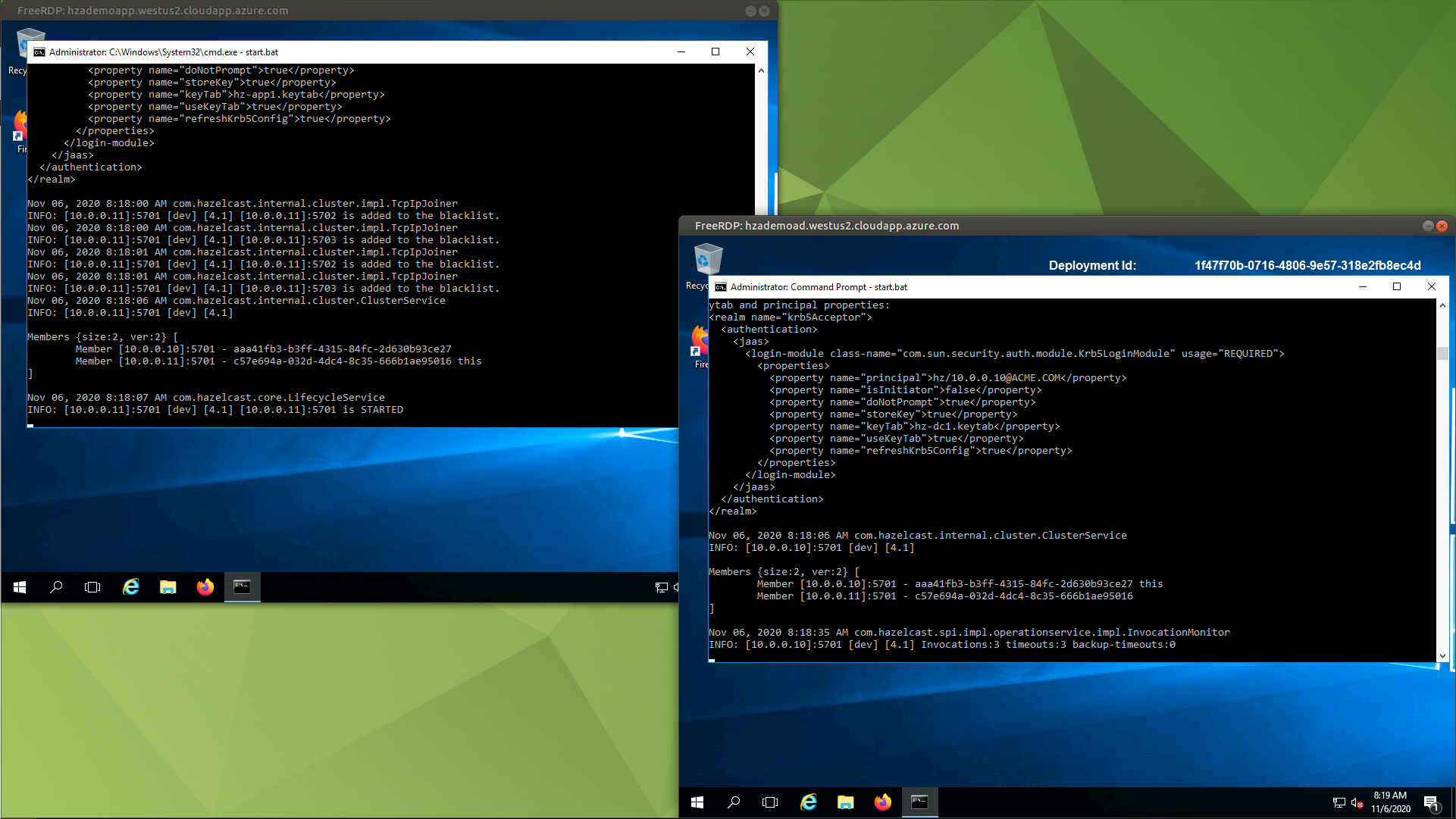

Figure 6. Screenshot - Running Hazelcast cluster

Within the security configuration, we defined which realm is used for the member-to-member authentication (kerberosRealm).

The security realm itself has two configuration parts:

authentication - responsible for verifying incoming connections and mapping client roles;
identity - defines a member’s credentials - used to prove its own identity to other members.

The most important options in the kerberos authentication and kerberos identity configurations are the principal (defines own Kerberos name) and keytab-file (file containing secrets of given principal).

Simple Kerberos configuration warnings

A warning message is printed to the console when the simple Kerberos configuration form is used for authentication. It gives us a hint on how to configure the full JAAS authentication.

Connection initiator warning

WARNING: Using generated Kerberos initiator realm configuration is not intended for production use. It's recommended to properly configure the Krb5LoginModule manually to fit your needs. Following configuration was generated from provided keytab and principal properties:
<realm name="krb5Initiator">
  <authentication>
    <jaas>
      <login-module class-name="com.sun.security.auth.module.Krb5LoginModule" usage="REQUIRED">
        <properties>
          <property name="principal">hz/10.0.0.11@ACME.COM</property>
          <property name="isInitiator">true</property>
          <property name="doNotPrompt">true</property>
          <property name="storeKey">true</property>
          <property name="keyTab">hz-app1.keytab</property>
          <property name="useKeyTab">true</property>
          <property name="refreshKrb5Config">true</property>
        </properties>
      </login-module>
    </jaas>
  </authentication>
</realm>

Connection acceptor warning

WARNING: Using generated Kerberos acceptor realm configuration is not intended for production use. It's recommended to properly configure the Krb5LoginModule manually to fit your needs. Following configuration was generated from provided keytab and principal properties:
<realm name="krb5Acceptor">
  <authentication>
    <jaas>
      <login-module class-name="com.sun.security.auth.module.Krb5LoginModule" usage="REQUIRED">
        <properties>
          <property name="principal">hz/10.0.0.10@ACME.COM</property>
          <property name="isInitiator">false</property>
          <property name="doNotPrompt">true</property>
          <property name="storeKey">true</property>
          <property name="keyTab">hz-dc1.keytab</property>
          <property name="useKeyTab">true</property>
          <property name="refreshKrb5Config">true</property>
        </properties>
      </login-module>
    </jaas>
  </authentication>
</realm>

We will show how to use the full Kerberos configuration form in next sections.

Configure Hazelcast Client

Once we have the cluster running we will configure a client. Its roles will be loaded from the Active Directory using the LDAP protocol. We will use the existing domain user account for authenticating the client.

Create groups and mappings in Active Directory

To demonstrate the recursive role mapping feature, we will define two new Active Directory groups. The first one, called "Acme Cache" will have its name referenced in client permissions configuration on Hazelcast members. The second group "Acme Cache Czechia" will be a member of the first one. The active domain user (hazelcast in our environment) will be added as a member of the "Acme Cache Czechia" group.

New-ADGroup -Name "Acme Cache" -GroupScope Global `
  -Description "Cache users"
New-ADGroup -Name "Acme Cache Czechia" -GroupScope Global `
  -Description "Cache users in the Czech Republic"

Add-ADGroupMember -Identity "Acme Cache" -Members "Acme Cache Czechia"
Add-ADGroupMember -Identity "Acme Cache Czechia" -Members hazelcast

Re-configure members

We used the simplified Kerberos configuration when we tried Kerberos authentication between members. Let’s use the full form now. We need it also to enable Kerberos (GSS-API) authentication into Active Directory’s LDAP interface.

C:\hazelcast-enterprise-4.1\demo\hazelcast.yml

hazelcast:
  license-key: "PUT_THE_LICENSE_KEY_HERE"
  network:
    join:
      multicast:
        enabled: false
      tcp-ip:
        enabled: true
        member-list:
          - 10.0.0.10
          - 10.0.0.11
  security:
    enabled: true
    realms:
      - name: kerberosRealm
        authentication:
          kerberos:
            relax-flags-check: true
            use-name-without-realm: true
            security-realm: krb5Acceptor
            ldap:
              url: ldap://DC1.acme.com/
              system-authentication: GSSAPI
              security-realm: krb5Initiator
              skip-authentication: true
              user-context: DC=acme,DC=com
              user-filter: "(|(sAMAccountName={login})(servicePrincipalName={login}))"
              role-mapping-mode: direct
              role-mapping-attribute: memberOf
              role-recursion-max-depth: 5
              role-name-attribute: CN
              parse-dn: false
        identity:
          kerberos:
            realm: ACME.COM
            security-realm: krb5Initiator
      - name: krb5Acceptor
        authentication:
          jaas:
            - class-name: com.sun.security.auth.module.Krb5LoginModule
              usage: REQUIRED
              properties:
                isInitiator: false
                useTicketCache: false
                doNotPrompt: true
                useKeyTab: true
                storeKey: true
                principal: hz/10.0.0.11@ACME.COM
                keyTab: hz-app1.keytab
      - name: krb5Initiator
        authentication:
          jaas:
            - class-name: com.sun.security.auth.module.Krb5LoginModule
              usage: REQUIRED
              properties:
                isInitiator: true
                useTicketCache: false
                doNotPrompt: true
                useKeyTab: true
                storeKey: true
                principal: hz/10.0.0.11@ACME.COM
                keyTab: hz-app1.keytab
    member-authentication:
      realm: kerberosRealm
    client-authentication:
      realm: kerberosRealm
    client-permissions:
      all:
        principal: "Acme Cache"

What’s new here are the explicitly defined Krb5LoginModule configurations in security realms krb5Initiator and krb5Acceptor.

We also added the ldap sub-section in kerberos authentication. It’s responsible for searching recursively the group names which are used as client’s roles.

The last change is defining the client-permissions section. We add one universal permission which allows clients with role Acme Cache assigned all operations on the cluster.

When we restart the members with this new configuration, they should again form the cluster. The console is without warnings related to the simplified Kerberos config now.

Check and Prepare Client Environment

We will run the Hazelcast Client Demo application on the application Windows Server.

Let’s make sure the active user is authenticated to the domain using Kerberos first. Let’s use the klist tool in Windows (C:\Windows\System32\klist.exe).

C:\Users\hazelcast>C:\Windows\System32\klist.exe

Current LogonId is 0:0x1fda985

Cached Tickets: (2)

#0>     Client: hazelcast @ ACME.COM
        Server: krbtgt/ACME.COM @ ACME.COM
        KerbTicket Encryption Type: AES-256-CTS-HMAC-SHA1-96
        Ticket Flags 0x40e10000 -> forwardable renewable initial pre_authent name_canonicalize
        Start Time: 11/9/2020 8:44:37 (local)
        End Time:   11/9/2020 18:44:37 (local)
        Renew Time: 11/16/2020 8:44:37 (local)
        Session Key Type: AES-256-CTS-HMAC-SHA1-96
        Cache Flags: 0x1 -> PRIMARY
        Kdc Called: DC1.acme.com

...

If the krbtgt ticket is not listed in your environment, then try to logout and newly login with a Windows domain account.

To make sure Java can access this ticket (stored in the Windows LSA store), we need to allow access of external applications to the store. Let’s run the following command:

Reg Add HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\Kerberos\Parameters /v AllowTGTSessionKey /t REG_DWORD /d 1

Configure Hazelcast client

Let’s create the hazelcast-client.yml configuration file in the demo directory within the Hazelcast installation.

C:\hazelcast-enterprise-4.1\demo\hazelcast-client.yml

hazelcast-client:
  network:
    cluster-members:
      - 10.0.0.10
      - 10.0.0.11
  security:
    kerberos:
      security-realm: krb5Initiator
    realms:
      - name: krb5Initiator
        authentication:
          jaas:
            - class-name: com.sun.security.auth.module.Krb5LoginModule
              usage: REQUIRED
              properties:
                isInitiator: true
                useTicketCache: true
                doNotPrompt: true

The Kerberos configuration on the client side is similar to the member configuration. We just need to define the kerberos identity and reference its Krb5LoginModule configuration.

We don’t define a keytab file, but we want to use existing credentials, so we set the useTicketCache option value to true.

Run the client demo application

The client configuration is ready, let’s start the client application now:

cd \hazelcast-enterprise-4.1\demo
clientConsole.bat

The application should successfully connect to the cluster and data operations should work.

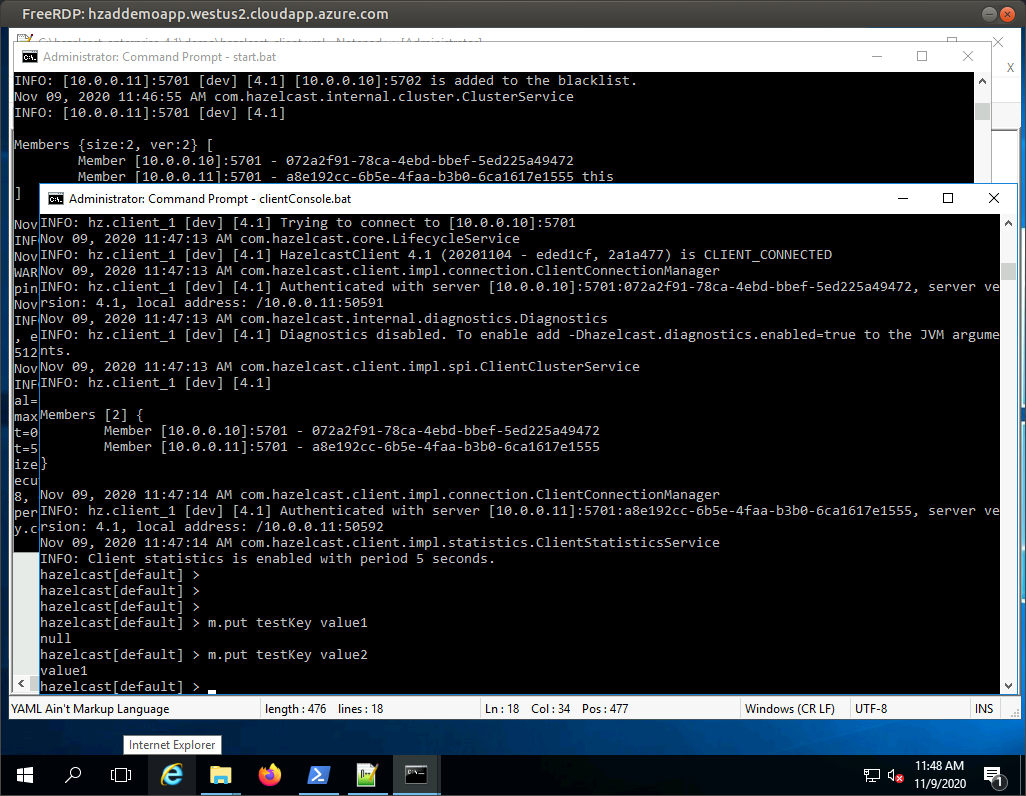

Figure 7. Screenshot - Client Console Demo Application

Troubleshooting

Did anything go wrong in your setup? Try to look in more detail what’s happening underhood. Hazelcast and Java itself provide system properties which allow printing Kerberos related debug messages to console.

You can also reconfigure the log level for the com.hazelcast.security category to inspect authentication flow within the Hazelcast login modules.

Just edit the Hazelcast batch files (start.bat, clientConsole.bat) and add the following arguments to the java program call:

-Djava.util.logging.config.file=debug-logging.properties \
-Dsun.security.krb5.debug=true \
-Dsun.security.jgss.debug=true

Create the new debug-logging.properties file beside the batch file:

handlers=java.util.logging.ConsoleHandler
.level=INFO
java.util.logging.ConsoleHandler.level=ALL
java.util.logging.SimpleFormatter.format=%1$tF-%1$tT [%4$s] %2$s %5$s%6$s%n
com.hazelcast.security.level=ALL

You can also add the debug option to Krb5LoginModule configuration. E.g.

  - name: krb5Initiator
    authentication:
      jaas:
        - class-name: com.sun.security.auth.module.Krb5LoginModule
          usage: REQUIRED
          properties:
            debug: true

Summary

We have configured the Hazelcast Enterprise cluster with Kerberos-based authentication on the Active Directory domain.

First, we used the simple Kerberos configuration just for member authentication. Then we added the full configuration and also included the client configuration. The client authorization was based on group membership defined in the Active Directory.

Send us your feedback
